Kohree

50 Amp Twist Lock Plug

SKU: HY0421
Price
$29.99

OR
Buy from Kohree's Amazon Store

Specifications

AC Adapter Current: 50A.

Volt: 125/250V.

Material: Copper.

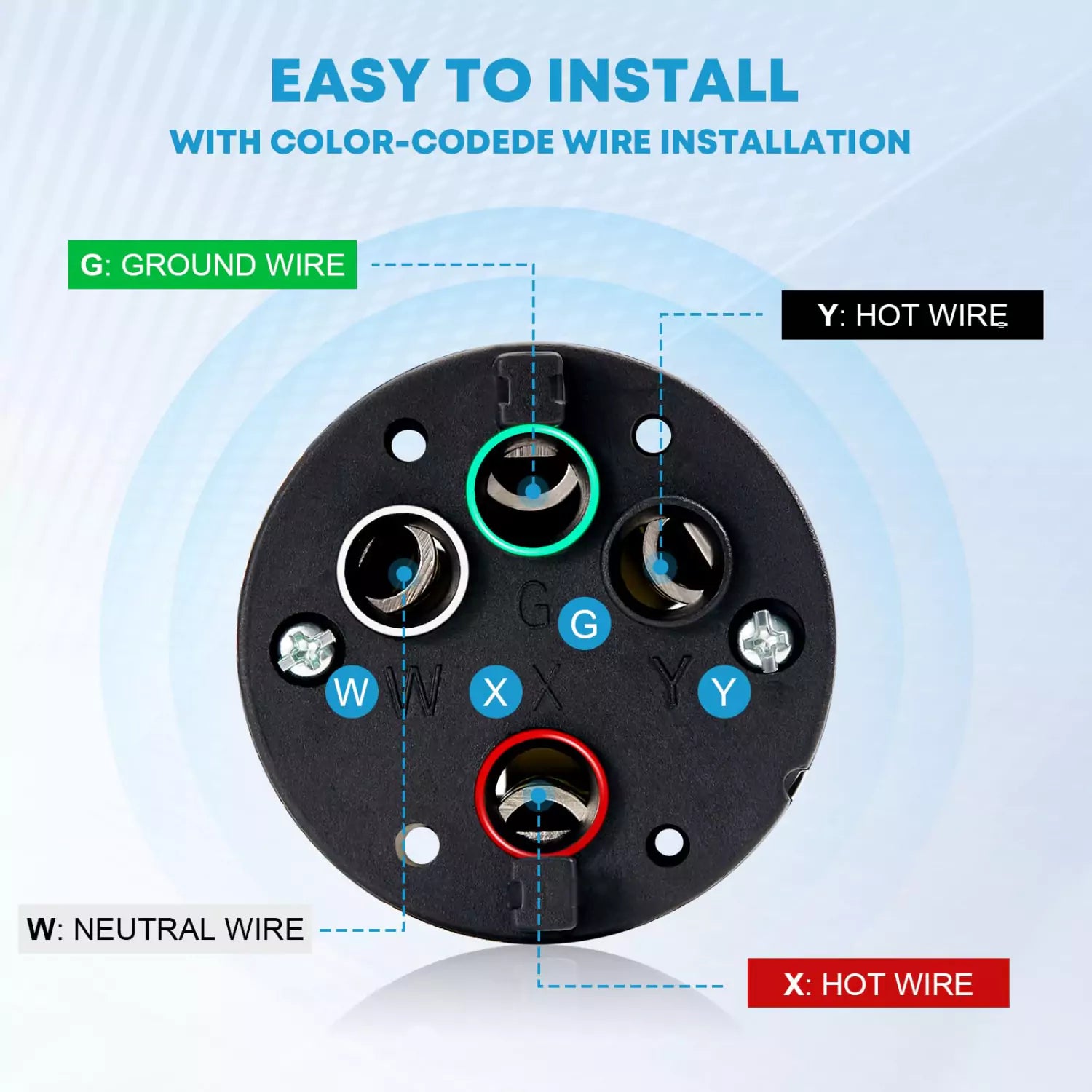

4-wire cable: W - white wire; G - green wire; X - red wire; Y - black wire.

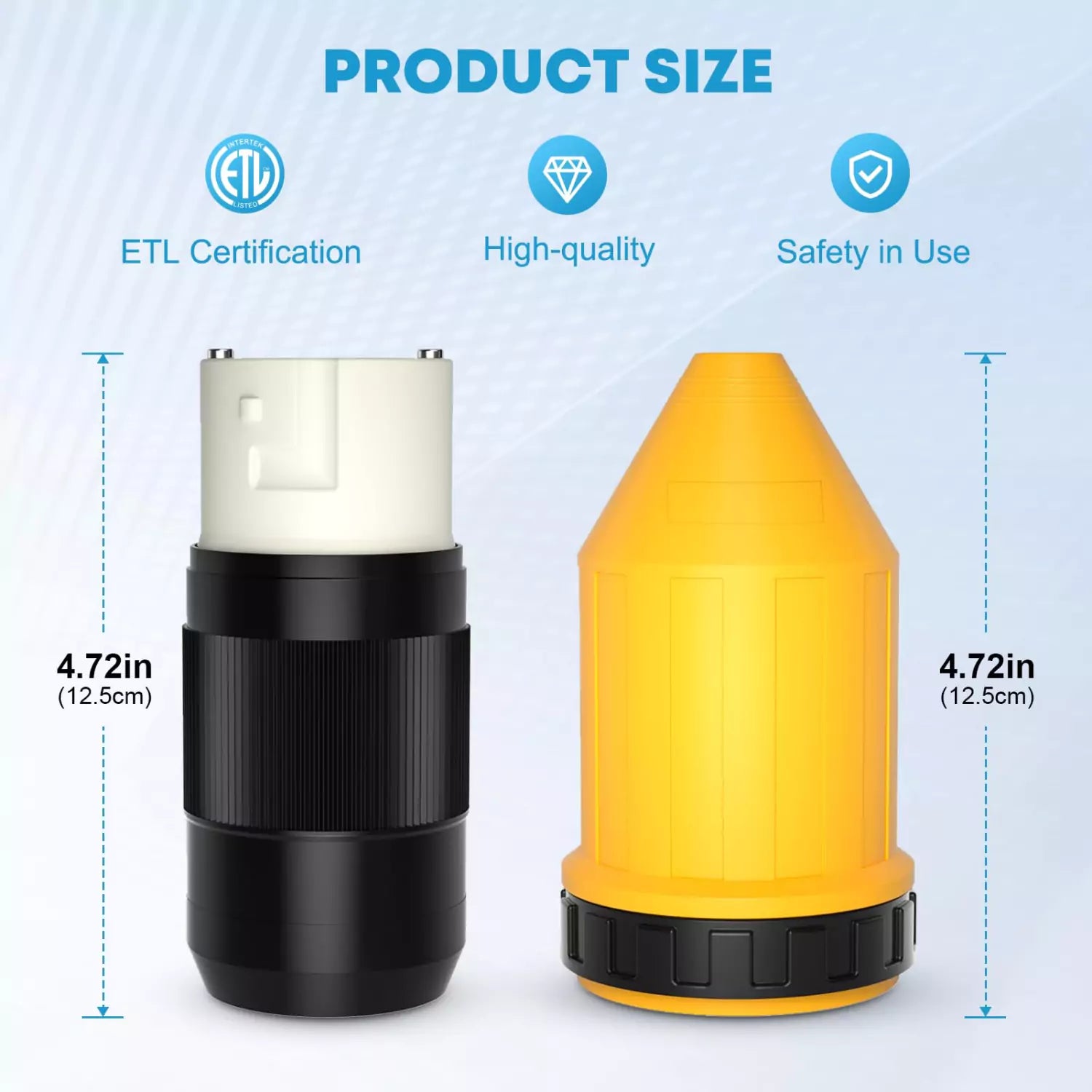

Overall length: 6.5 inches (16.5cm).

Cover and ring: 2.4 inches (6.1cm) inner diameter (ID), 3 inches (7.6cm) outer diameter (OD).

Inside Depth: 3.5 inches (8.9cm).

Outer Length: 5.25 inches (13.3cm).

Connector: Approximately 2 inches (5.1cm) across face and 5 inches overall length.

Across the back where the cord enters adds 0.25 inches (2.25 inches / 5.7cm across).

Quality Guarantee

Our products come with a 1-year warranty, ensuring a quality guarantee that you can rely on.

Have questions about this item?

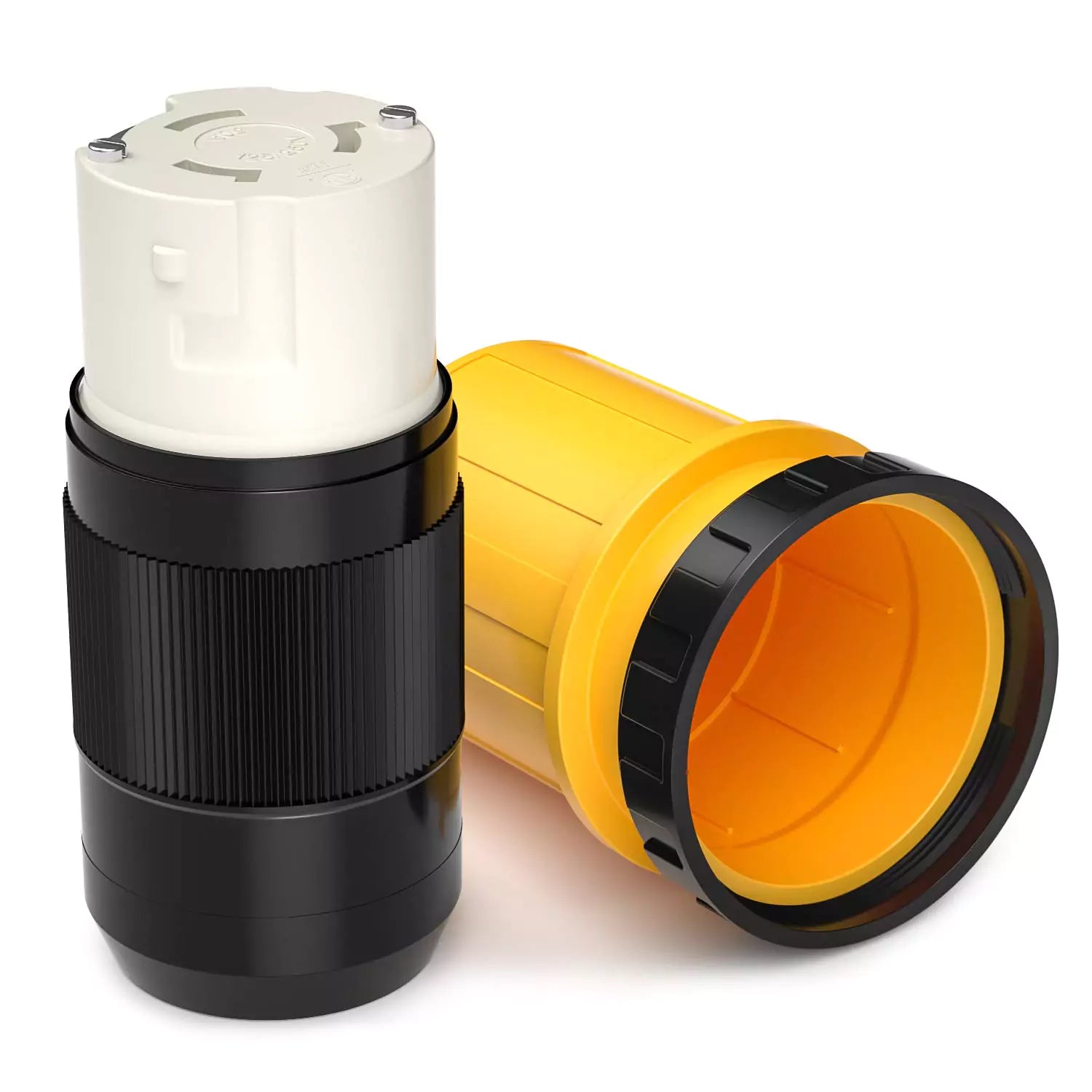

Kohree 50 Amp Twist Lock Plug is a highly durable and safe product that ensures a reliable power connection for your outdoor activities. Its heavy-duty material, strong corrosion resistance, and waterproof and weatherproof features make it perfect for use in harsh outdoor conditions. The UL and CSA certification guarantees that the 50amp locking shore connector can safely handle 50A 125/250V 4-wire cable.

This 50 Amp Connector is not only robust but also convenient and easy to use. The colored-coded wire installation makes the installation process effortless, while the weather-proof boot with a locking ring adds an extra layer of protection. The connector replacement is widely used for RV, trailer, camper, marine, and boat applications, making it a versatile and essential component for outdoor enthusiasts. Whether you're planning a camping trip or a long-haul journey, this 50 Amp Twist Lock Plug will ensure that you have a safe and reliable power connection.

AC Adapter Current: 50A.

Volt: 125/250V.

Material: Copper.

4-wire cable: W - white wire; G - green wire; X - red wire; Y - black wire.

Overall length: 6.5 inches (16.5cm).

Cover and ring: 2.4 inches (6.1cm) inner diameter (ID), 3 inches (7.6cm) outer diameter (OD).

Inside Depth: 3.5 inches (8.9cm).

Outer Length: 5.25 inches (13.3cm).

Connector: Approximately 2 inches (5.1cm) across face and 5 inches overall length.

Across the back where the cord enters adds 0.25 inches (2.25 inches / 5.7cm across).

FAQs

Q1: Can I use 4-gauge wire with this 50 Amp Twist Lock Plug?

While it can be a tight fit, it is generally recommended to use #6 AWG wire for a 50 Amp connection.

Q2: Can this plug connector be used with portable generators?

This is a female cord cap. If you have the corresponding male end and your generator has a matching outlet configuration, you can use it with your portable generator.

Q3: Is this connector compatible with the NEMA SS2-50P standard?

Yes, this connector follows the NEMA SS2-50R standard. It is a female power receptacle that can work with NEMA SS2-50P standard power plug.
